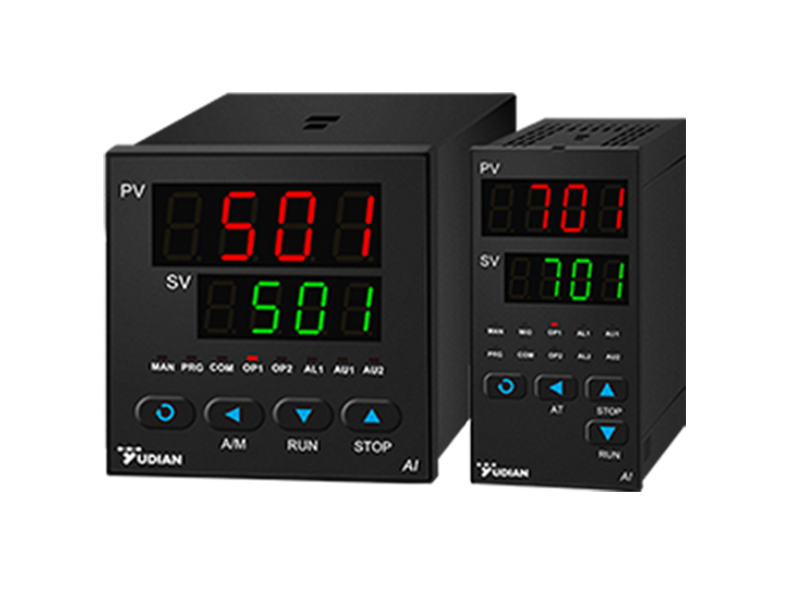

AI Series Single-channel Measurement Display Alarm Instrument
AI-200 Series: 0.3% measurement accuracy with a single-row 4-digit display
AI-500 Series: 0.3% measurement accuracy, single-row 4-digit display
AI-501 Series: 0.3% measurement accuracy with a dual-row 4-digit display
AI-701 Series: 0.2% measurement accuracy, dual-row 4-digit display
AI-200 Series Single-Channel Measurement Display and Alarm Instrument
1. 0.3% accuracy, with a two-year free warranty.
2. Single-row 4-digit display.
3. Support RTD and thermocouple inputs; no 0-5V or 1-5V inputs.
AI-500 Series Single-Channel Measurement Display and Alarm Instrument
1. 0.3% measurement accuracy, with a 3-year free warranty.
2. Single-row 4-digit display.
3. Support thermocouples, RTDs, and 0~5V or 1~5V inputs. Input modules can be installed, with options for pluggable modules. However, B panel size is not supported. Communication functionality is available.
4. The main output is in current transmitter mode.
AI-501 Series Single-Channel Measurement Display and Alarm Instrument
1. 0.3% measurement accuracy, with a 3-year free warranty.
2. Dual-row 4-digit display.
3. Support thermocouple, RTD, and 0~5V or 1~5V inputs. Input modules can be installed, with options for pluggable modules.B panel size is optional. Communication functionality is available.
4. The main output is in current transmitter mode.
AI-701 Series Single-Channel Measurement Display and Alarm Instrument
1. 0.2% measurement accuracy, with a 5-year free warranty.
2. Dual-row 4-digit display.
3. Support thermocouple, RTD, and 0~5V or 1~5V inputs. Input modules can be installed, with options for pluggable modules.B panel size is optional. Communication functionality is available.
4. The main output is in current transmitter mode.
| File Name | Number | Associated Model | Version | Preview | Download |
|---|---|---|---|---|---|
| AI-700/701 Intelligent Measuring and Alarm Instrument Instrument User's Manual | S183-08 | 700/701 | V9.2 |
|
|
| AI-500/501 Intelligent Indicating/Alarm Instrument Operation Instruction | S049-18 | 500/501 | V9.1 |
|
|
