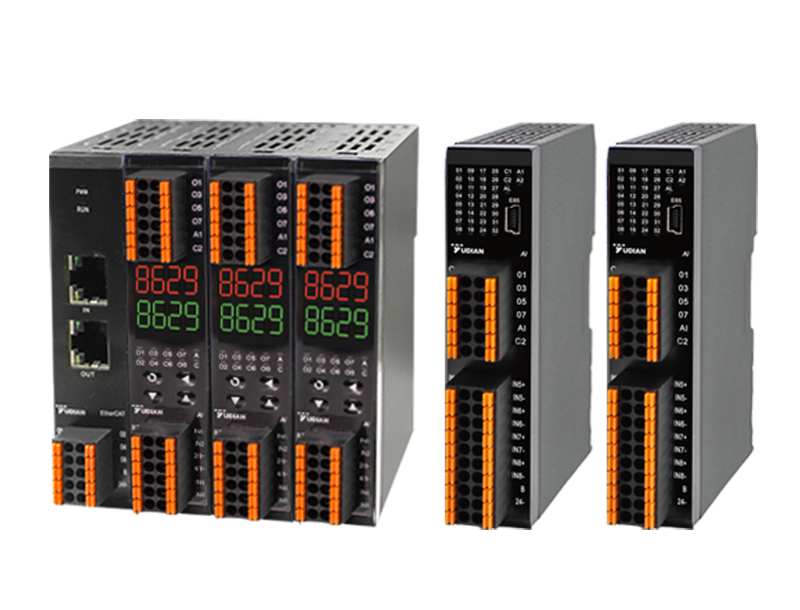

AI-86X9 Series Multi-Loop Cascade Temperature Controllers
AI-8629GJX: Feature 4 channels of isolated input, with J1 configured for thermocouple input; J3 and J4 provide 4-channel isolated linear voltage and current inputs, respectively, with input isolation voltage exceeding 200 V; J7 supports 4 channels of universal isolated input for both thermocouples and RTDs
AI-8689GJ1: 8-channel isolated independent thermocouple input
1. Each instrument integrates 5 Yudian dedicated 24-bit high-performance, low-drift A/D converters, enabling 4 channels of conventional PID control or 2 channels of cascade PID control.
2. Measurement accuracy of 0.15% with fully isolated input.
3. Programmable output channels; each channel allows for different input specifications, and the upper and lower output limits can be set independently for each channel.
4. Each channel can preset 5 sets of PID parameters, with automatic switching based on setpoints, featuring an intelligent calibrated cascade control function.
| File Name | Number | Associated Model | Version | Preview | Download |
|---|---|---|---|---|---|
| AI-8x89G Multi-Loop Intelligent Controller User Manual | S235-02 | 8689G | V9.50 |
|
|
| User's Manual for Ai-8 * 29 Multi-loop Regulator with High Precision | S224-06 | 8529 | V9.35 |
|
|
